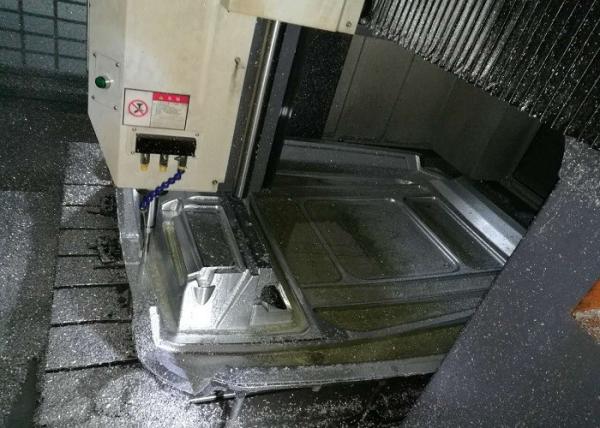

1700 MM Double Wall Roof For Harvester Truck Created From Aluminum Rotomolding Tool

Genernal tools specifications:

1-Foam tooling model as casting patterns.

2-Aluminum 5/16” wall castings.

3-No or minimal porosity, guaranteed not to blow holes.

4-2” wide x 9/16” parting lines.

5-Tongue and groove parting lines.

6-Tongue is on the side that will mount to arm.

(So plastic powder isn’t spilled into groove)

7-Two options for texture, 0.8mm/1.5mm shoot blasted. Mat.

8-Fabricated frame, minimum (1-1/2” x 1-1/2” mild steel tubing)

9-Heavy duty Clamps.

10- Mild steel lifting hooks.

Suzhou Zhuohe Mould Technology Co., Ltd.,

Company founded in 2015, founder Mr. Huang Guangming has many years of mould plastic products development and production experience, has led the team to participate in the 2008 Olympic Games in Beijing, World Expo, Shanghai 2010 military forces box project technology development and production. Master of engineering vehicle, rotational tank water tank water tank, clean environmental protection equipment, entertainment equipment, toys, furniture, canoeing, pontoon floating body, transport facilities, agricultural machinery accessories, cold chain insulation box, medical accessories manufacturing experience and technology.

Plant covers an area of 6000 square meters, has 8 stations of Longmen, vertical CNC, CNC lathe, EDM, wire cutting, sandblasting machine, automatic rolling machine 4 units and other related equipment. The mould can be processed with a diameter of 3.5 meters and 6 meters in diameter, with a weight of up to 1.5 tons. The annual production capacity of the mould is 300 sets and the products are 1200 tons. Mold 70% is exported to all countries in the world, including the USA, Britain, Canada, Australia, France, Germany, Russia, Mexico, Japan, Thailand, Europe and America, Southeast Asian countries and so on.

With digital mould design engineer and Aluminum Alloy most experienced domestic casting engineers, rotational molding 15 years experience, rotational foaming technology and material granulation color matching technology. We can design a reasonable solution and provide relevant drawings according to the needs of different products. To provide one-stop service, customers only need to provide samples or drawings, drawings, we can meet the agreed requirements within the delivery of your sample.

Our philosophy: stable delivery time, reasonable price and good after-sales service, excellent quality and specialized manufacturing control, are your trustworthy suppliers.
